Architecture

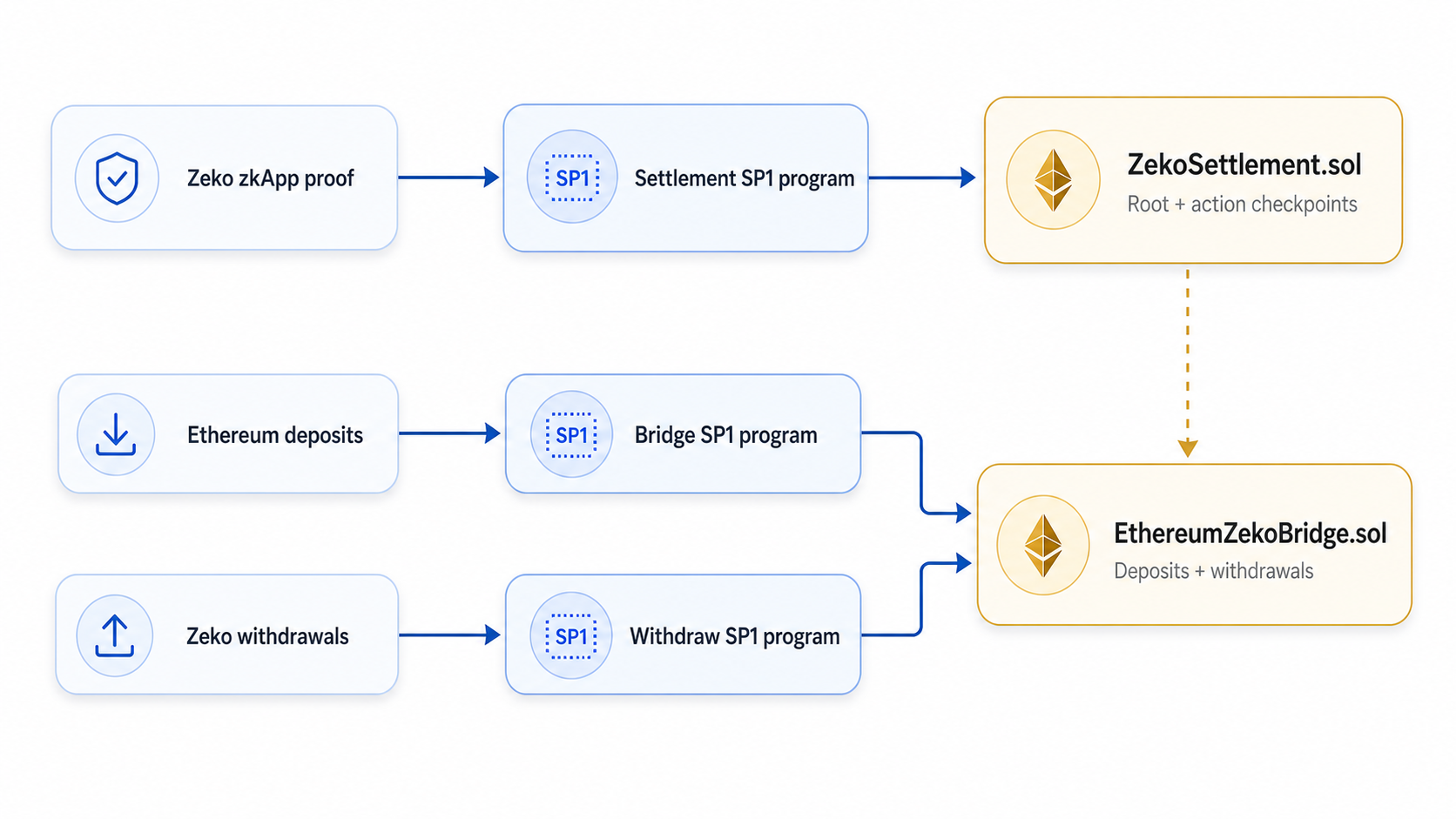

The system separates expensive proof computation from Ethereum-side state continuity checks.

SP1 programs

Each guest program commits a narrowly scoped public output:

• Settlement commits proof validity and the extracted Zeko state transition.
• Bridge commits Ethereum deposit accumulator and Zeko action-state transitions.
• Withdraw commits Zeko action-state and Ethereum withdrawal accumulator transitions.

The host binaries in script/src/bin parse fixtures, prepare SP1 inputs, execute or prove the guest programs, and decode their public values. Shared types live in lib/src/lib.rs.

Ethereum contracts

ZekoSettlement.sol verifies settlement proofs, tracks the current root, and records accepted action-state checkpoints.

EthereumZekoBridge.sol:

• locks ETH and ERC20 deposits
• maintains an append-only deposit accumulator
• verifies deposit and withdrawal SP1 transitions
• accepts withdrawal accumulator checkpoints
• validates withdrawal claims and releases locked assets

Both contracts are UUPS implementations intended to run behind ERC1967Proxy proxies.

Roles

Role	Responsibility
DEFAULT_ADMIN_ROLE	Grants and revokes roles.
ADMIN_ROLE	Manages settlement parameters, tokens, pause state, and emergency withdrawals.
PROVER_ROLE	Submits SP1 proofs and transition public values.
UPGRADER_ROLE	Authorizes UUPS implementation upgrades.

See the security model for the exact trust boundaries between proofs, contracts, and administrative roles.
